CQ-IIT18-F18A
These Gen 2+ image intensifiers tubes(10160) were Made in China. Each intensifier features a high-efficiency multi-alkali photocathode(Na2KSb) usd for surveillance and navigation roles.
These Gen2+ image tubes will work in any drop in 18mm style housing for field replacement.
Model | CQ-IIT18-F18A |
Image intensifier | Gen2+ |
FOM | 1800 |
Resolution | 64 lp.mm -1 |
SNR | 29 |
Power Supply | Auto Gating |
Photocathod Sensitivity at 2850K | 1225 uA.lm -1 |
Luminance Gain | 15900 cd.m -2.lx -1 |

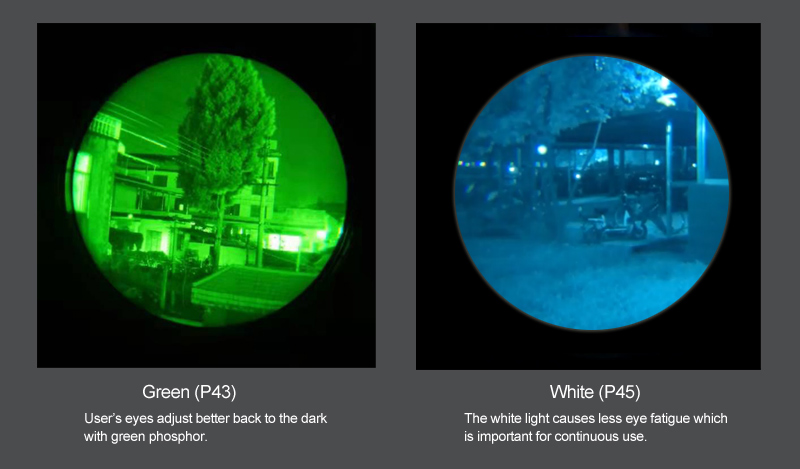

Phosphor Type | P-43 Green or P-45 White |
Operation Life | 10000 h |
Usage | Night Vision Binocular, Monocular |
** The above data is for reference only, in case of change or adjustment without notice, the actual product shall prevail, and should not be interpreted as the benchmarking parameters at the time of product delivery. |
These Gen 2+ image intensifiers tubes(10160) were Made in China. Each intensifier features a high-efficiency multi-alkali photocathode(Na2KSb) usd for surveillance and navigation roles.
These Gen2+ image tubes will work in any drop in 18mm style housing for field replacement.
Model | CQ-IIT18-F18A |
Image intensifier | Gen2+ |
FOM | 1800 |
Resolution | 64 lp.mm -1 |
SNR | 29 |
Power Supply | Auto Gating |
Photocathod Sensitivity at 2850K | 1225 uA.lm -1 |
Luminance Gain | 15900 cd.m -2.lx -1 |
Phosphor Type | P-43 Green or P-45 White |
Operation Life | 10000 h |
Usage | Night Vision Binocular, Monocular |
** The above data is for reference only, in case of change or adjustment without notice, the actual product shall prevail, and should not be interpreted as the benchmarking parameters at the time of product delivery. |
