CQ-PT56x92-12W

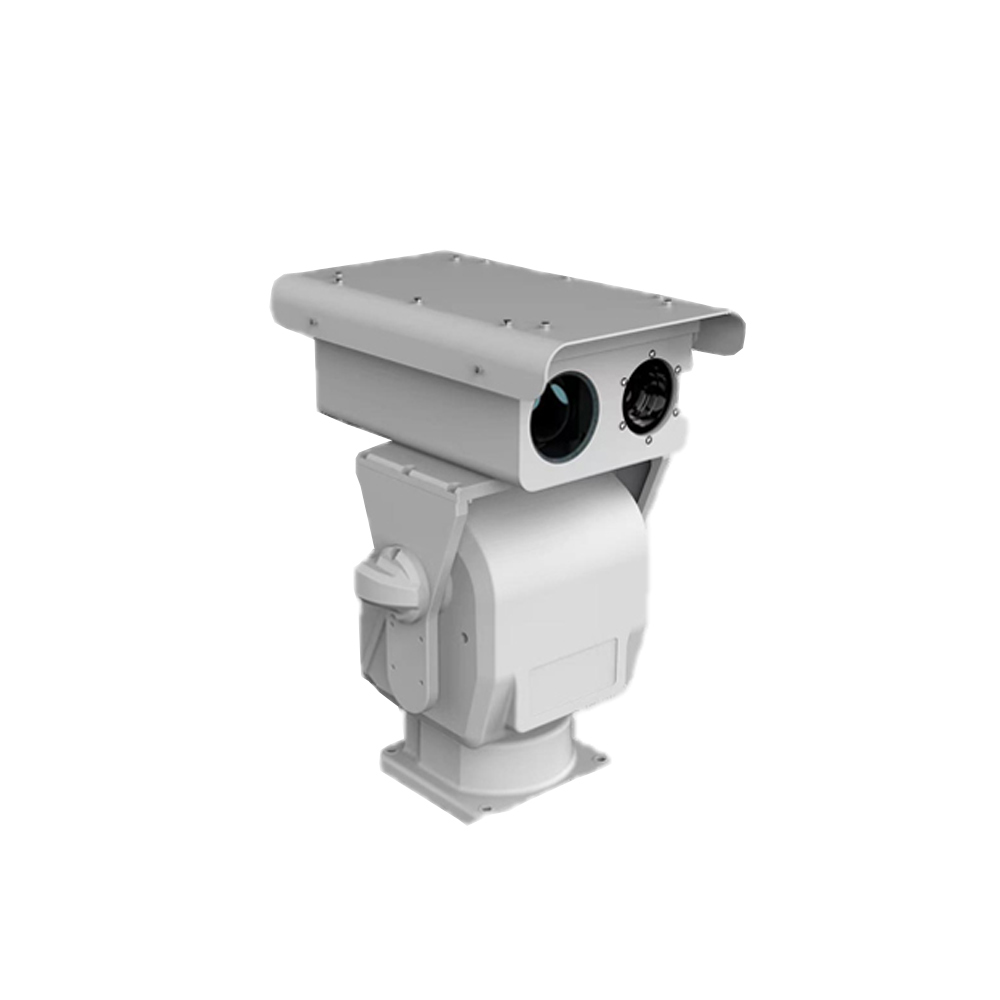

Rugged, all-weather portable PTZ camera system featuring an 1.5km laser camera, enabling excellent detection ability, especially at night.
Small enough for mobile deployment, this rugged PTZ camera excels in both practical and extreme applications. Ideal for mobile field surveillance, rapid deployment situations, and anywhere else a compact, high performance PTZ is needed, it will not disappoint.
Specifications | ||
Model | CQ-PT56x92-12W | |
Camera | Image Sensor | 1/1.8” Progressive Scan CMOS |
Lens | Video Output | 50Hz: 25fps (2560*1440,1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560*1440,1920 × 1080, 1280 × 960, 1280 × 720) |
Focal Length | 6.1~561mm, 92X Optical Zoom | |
Aperture Range | F1.4-F4.7 | |
Horizontal Field of View | 65.5-1.1°(wide-tele) | |
Minimum Working Distance | 100mm-3000mm (wide-tele) | |
Laser | Distance | 1500m |
Power | 12W | |
Wavelength | 808nm | |
Network | Storage Function | Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |
Interface Protocol | ONVIF (PROFILE S, PROFILE G, PROFILE T) | |
AI Algorithm | AI Computing Power | 1T |
PTZ | Rotation range | Horizontal: 0~360° continuous rotation; Vertical: +45°~-70° |
spinning speed | Horizontal: 0.4~40°/s; Vertical: 0.23~10°/s | |
Preset position accuracy | ±0.01° | |
Number of preset positions | 255 (customizable) | |
other | Support cruise scan/auto scan; support query angle return function (optional real-time angle return) | |
Communication | Pelco D RS485, Ethernet RJ45, RS422 | |
General | Power supply mode | DC12V/24V±10% |
Power consumption | Max 35W | |
Working temperature | -40℃~+65℃ | |
Working humidity | <90%RH | |
Protection grade | IP66 | |
EMC level | Power 4000Vsignal 2000V (line-to-ground 2000V, line-to-line 1000V) | |
Anti-salt fog level | PH value is 6.5~7.2, continuous spraying for 48 hours, no change on the surface | |
Dimension | 293mm*274mm*175mm | |
Product weight | <15kg |
