CQ-IIT18-F15NA

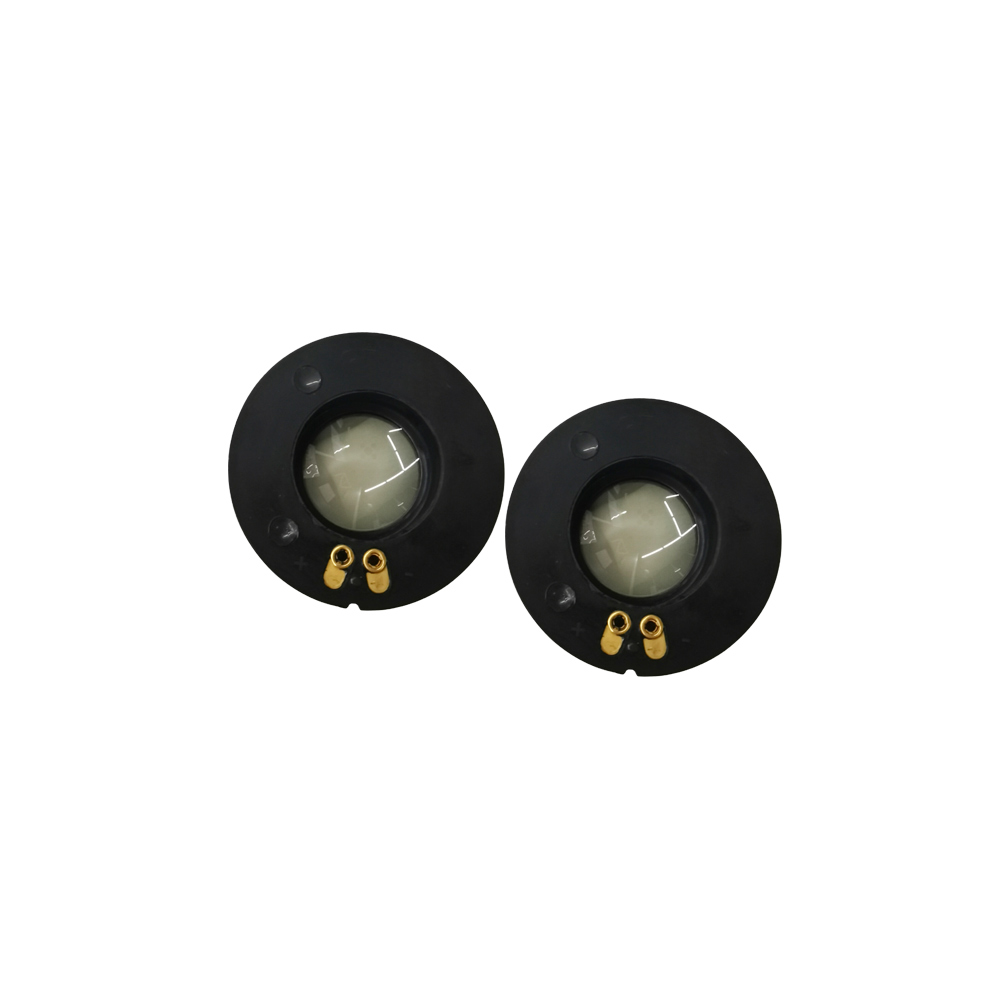

These Gen 2+ image intensifiers tubes(10160) were Made in China. Each intensifier features a high-efficiency multi-alkali photocathode(Na2KSb) usd for surveillance and navigation roles.
These Gen2+ image tubes will work in any drop in 18mm style housing for field replacement.
Model | CQ-IIT18-F15NA |
Image intensifier | Gen2+ |
FOM | 1500 |
Resolution | 64 lp .mm -1 |
SNR | 25 |
Auto Gating | Without |
Photocathod Sensitivity at 2850K | 722 uA .lm -1 |
Luminance Gain | 10600 cd .m -2 .lx -1 |
Phosphor Type | White or Green |
Operation Life | 10000 h |
Usage | Night Vision Binocular, Monocular |
** The above data is for reference only, in case of change or adjustment without notice, the actual product shall prevail, and should not be interpreted as the benchmarking parameters at the time of product delivery. |
These Gen 2+ image intensifiers tubes(10160) were Made in China. Each intensifier features a high-efficiency multi-alkali photocathode(Na2KSb) usd for surveillance and navigation roles.
These Gen2+ image tubes will work in any drop in 18mm style housing for field replacement.
Model | CQ-IIT18-F15NA |
Image intensifier | Gen2+ |
FOM | 1500 |
Resolution | 64 lp .mm -1 |
SNR | 25 |
Auto Gating | Without |
Photocathod Sensitivity at 2850K | 722 uA .lm -1 |
Luminance Gain | 10600 cd .m -2 .lx -1 |
Phosphor Type | White or Green |
Operation Life | 10000 h |
Usage | Night Vision Binocular, Monocular |
** The above data is for reference only, in case of change or adjustment without notice, the actual product shall prevail, and should not be interpreted as the benchmarking parameters at the time of product delivery. |
