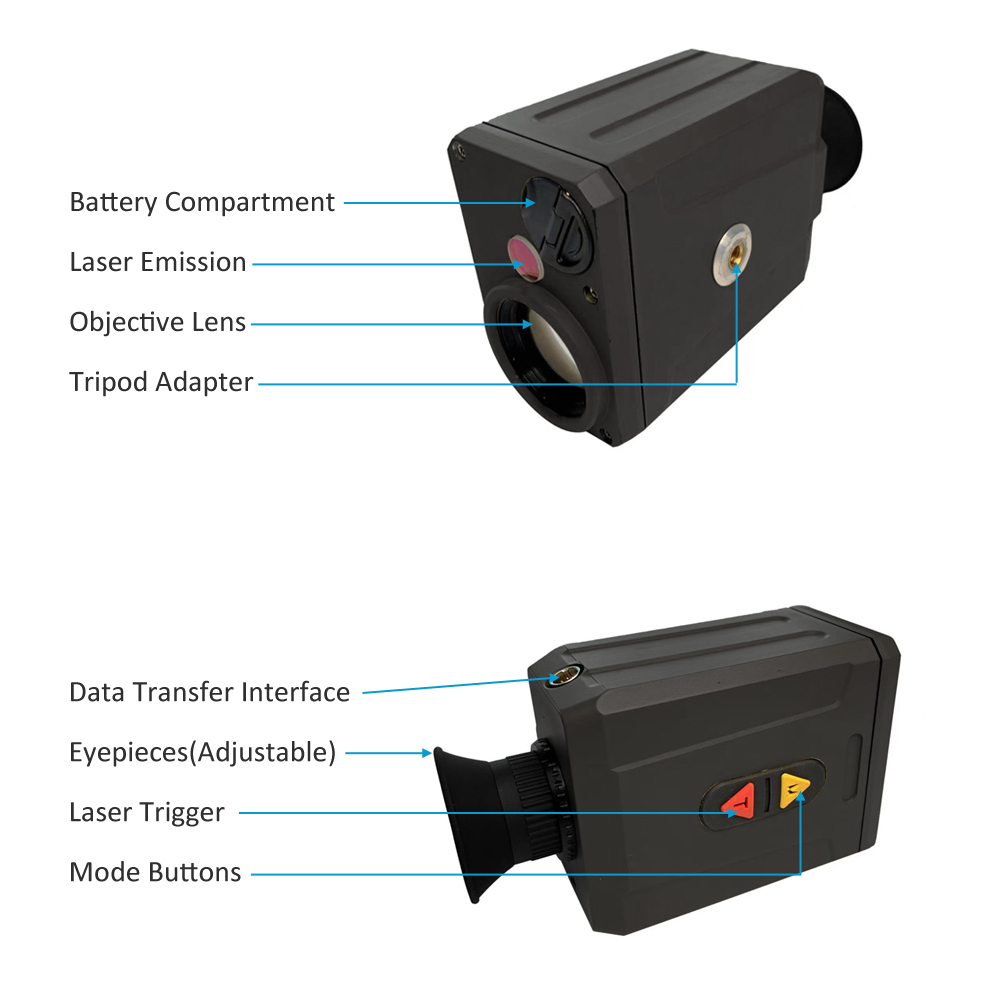

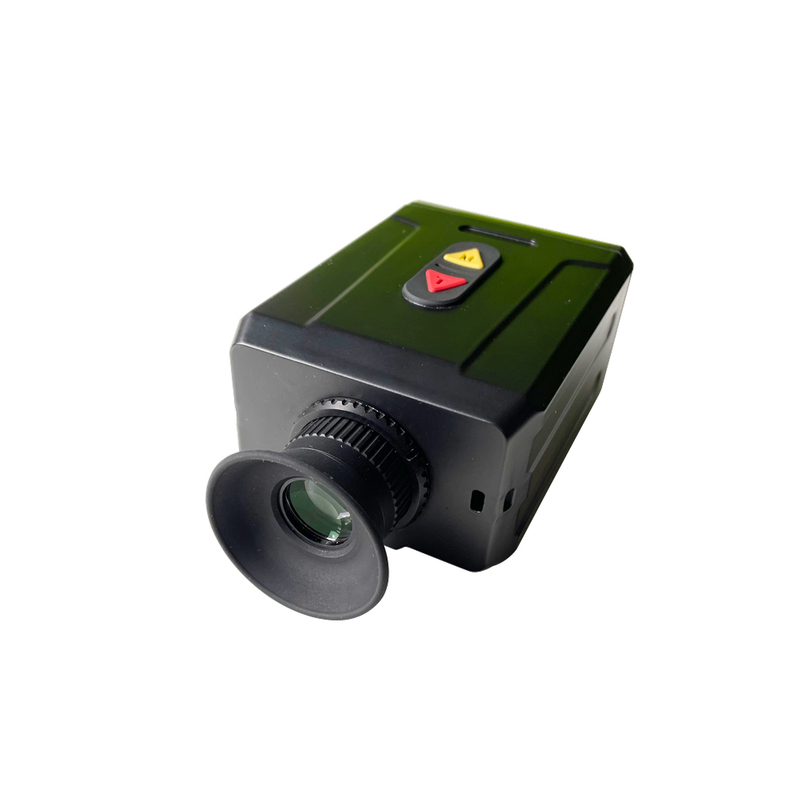

CQ-LRF008
| Model | CQ-LRF008 |
| Laser wavelength | 1535nm |
| Distance measurement range | For Nature Targets: 30m-8000m For 2.3m×2.3m Vehicle: 30m-5000m For 1.8m×0.5m Human: 30-2000m |
| Distance measurement accuracy | ±1m(Full range) |
| Accurate measurement rate | ≥98% |
| Measurement frequency | 1Hz |
| Display | LED internal display |
| Angle measurement range | Directions: 0~359° pitch and tilt: ±90° |
| Angle measurement accuracy | 1° |
| Objective lens aperture | 32mm |
| Magnification | 7X |
| Field of view | 6° |
| Diopter range | ±5D |
| Outlet diameter | 4.8 |
| Supply voltage | DC 5V |
| Power consumption | 5W |
| Data transfer interface | Uart(TTL_3.3V) |
| Weight | <200g |
| Operating temperature | -40°C ~ +55°C |
| Storage temperature | -50°C ~ +60°C |
| Main Features | Single-point ranging; two-point ranging; angle measurement |
