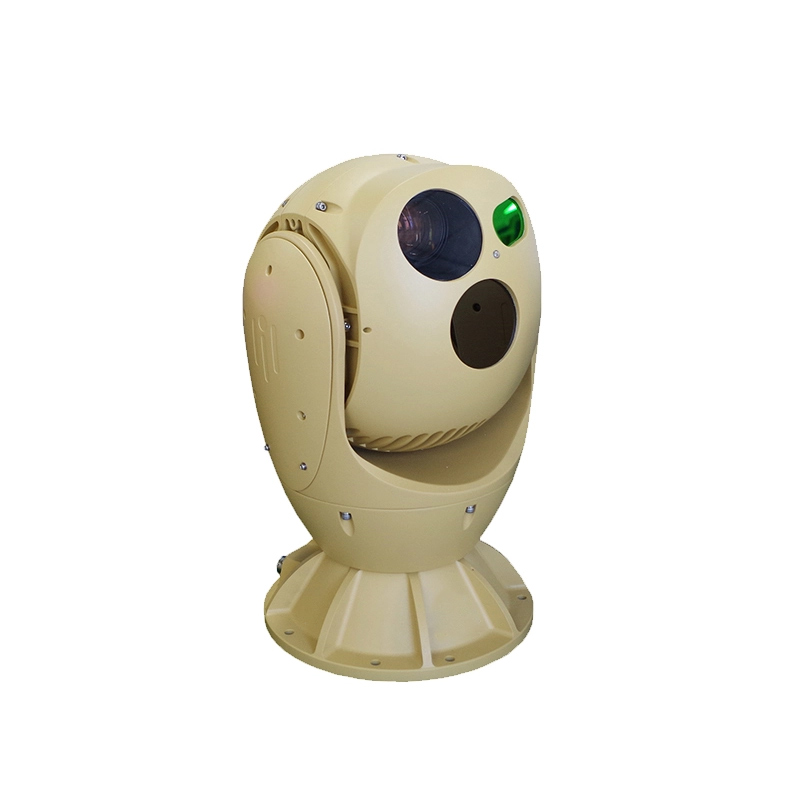

CQ-ZS20-CTRC630C30-2132-3LRF
Front
Back
| Model | CQ-ZS20-CTRC63C030-2132-3LRF | |
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 18km; Recognition: 6km; Identification: 3km |
| Human (1.8*0.6m) | Detection: 8km; Recognition: 3km; Identification: 1.5km | |
| Drone (0.3*0.3m) | Detection: 5km; Tracking: 2.5km | |
| Thermal Sensor | Sensor | Cooled Focal Plane Array (FPA) MCT HgCdTe detector |
| Effective Pixels | 640x512 50Hz | |
| Pixel Size | 15μm | |
| NETD | ≤20mK | |
| Spectral Range | 3.7~4.8μm, MWIR | |
| Thermal Lens | Focal length | 30~300mm 10X F5.5 |
| FOV (640*512) | 18.2°×14.6°~1.8°×1.5° | |
| Angular radian | 0.5~0.05mrad | |
| Focus | Manual/Auto Focus (3A adaptive active focusing algorithm, supports multiple trigger modes). | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| Frame Rate | 32Kbps~16Mbps, 60Hz | |
| Min. Illumination | 0.05Lux (Color), 0.01Lux (B/W) | |
| Visible Lens | Lens Size | 8~320mm 40X |
| Image Stabilization | Support | |
| Defog | Support | |
| Focus Control | Manual/Auto | |
| Digital Zoom | 16X | |
| LRF | Range | 1km |
| Image | Image Stabilization | Support Electronic Image Stabilization |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | |
| SDE | Support SDE digital image processing | |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse | |
| AGC | Support | |
| Ranging Ruler | Support | |
| PTZ | Accuracy | 0.02°, pulse precision motor drive, digital angle measurement sensor servo |
| Rotation | Pan: 0~360°, tilt: -45~+90° | |
| Speed | horizontal 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s | |
| Preset | 255 | |
| Patrol | 16*Patrol Route, 256 Preset for each route | |
| Enhance | Fan/Wiper/Heater attached | |
| Split | Upper and lower split design, can be packaged and transported, combined quickly | |
| Zero Setting | support the setting of pan and pitch zero | |
| Gyro-Image Stabilizer | Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10° | |
| Position Time | less than 4s | |
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles | |
| Interface | Ethernet | RJ45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |
| Video Output | PAL/NTSC | |
| Power | DC24V | |
| Compression | H.265 / H.264 / MJPEG | |
| Environmental | Operate Temp | -25ºC~+55ºC(-40ºC optional) |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP67 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind | |
| Anti-fog/salty | PH 6.5~7.2 (No less than 700 hours) | |
| Power | 250W (Peak)/ 50W (Stable) | |
| Weight | 18kg | |
