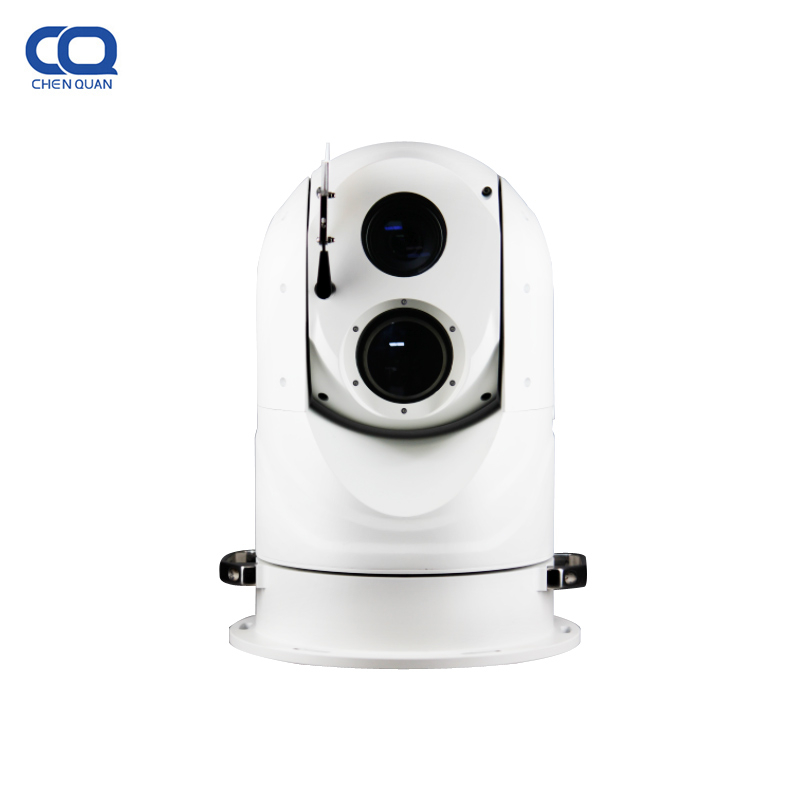

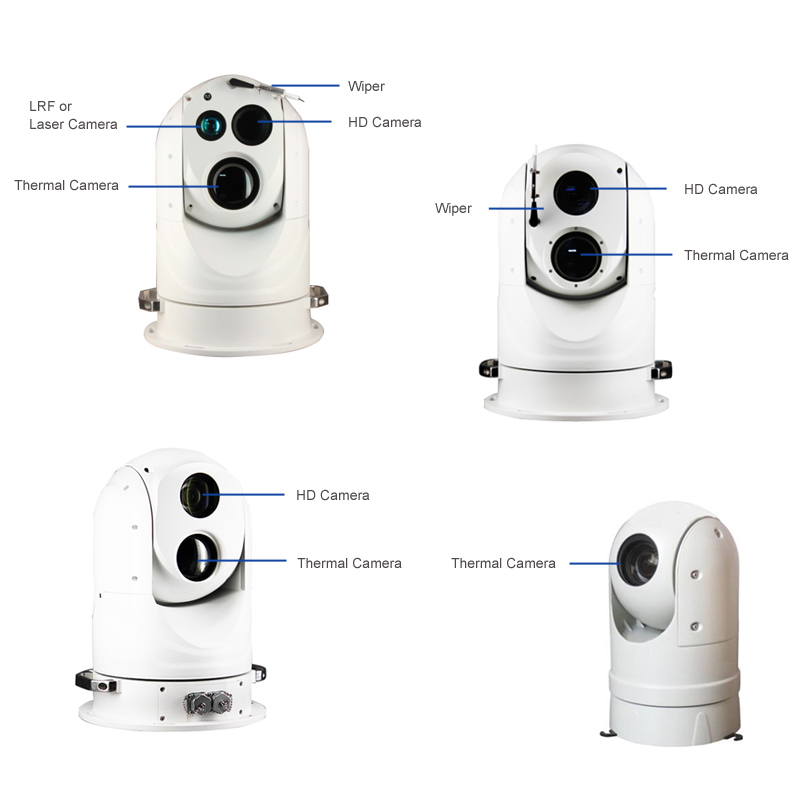

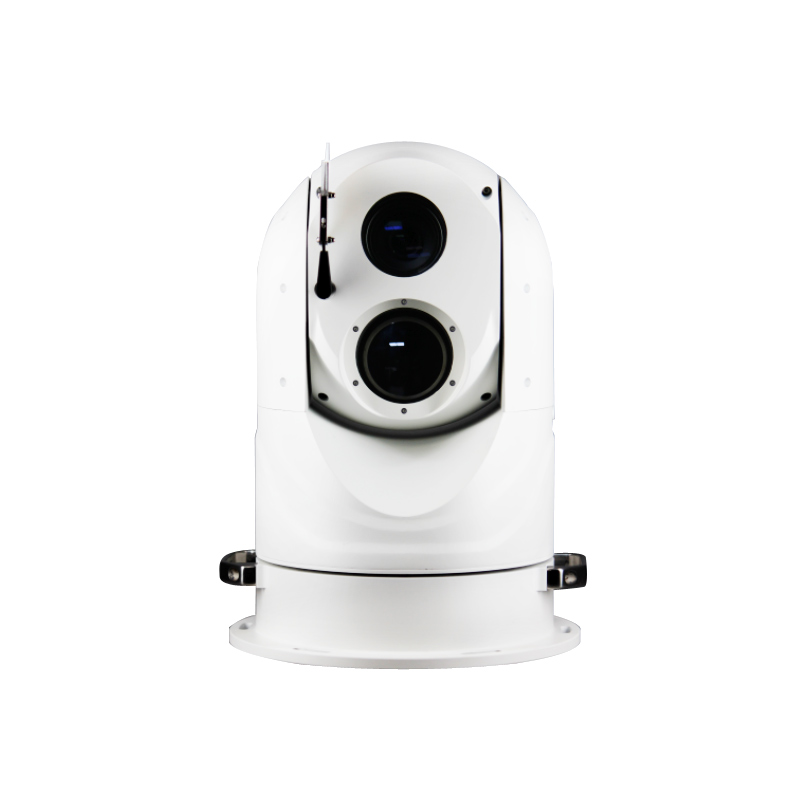

3x Zoom Firefighting Thermal Camera Robot Surveillance Camera with Wiper

Thermal Imaging

Detector Type

VOx Uncooled Infrared FPA

Pixel Resolution

640*512

Pixel Pitch

12μm

Detector Frame Rate

50Hz

Response Spectra

8～14μm

NETD

≤50mK@25℃,F#1.0

Focal Length

25~75mm

Image Adjustment

Brightness & Contrast Adjustment

Manual / Auto0 / Auto1

Polarity

Black hot / White hot

Palette

Support (18 types)

Reticle

Reveal / Hidden / Shift

Digital Zoom

1.0~8.0× Continuing Zooming (step 0.1), zoom in any area

Image Processing

NUC

Digital Filter and Imaging Denoising

Digital Detail Enhancement

Image Mirror

Right-left / Up-down / Diagonal

Daytime Camera

Image Sensor

1/2.8″progressive scan CMOS

Effective Pixels

1920×1080P 25Hz 2MP

Min.Illumination

Color:0.001LUX

B/W:0.0005LUX

Auto Control

AWB, auto gain, auto exposure

SNR

≥55dB

Wide Dynamic Range(WDR)

120dB

HLC

OPEN/CLOSE

BLC

OPEN/CLOSE

Noise Reduction

3D DNR

Electric Shutter

1/25～1/100000s

Day & Night

Filter Shift

Focus Mode

Auto/Manual

Focal Length

7mm to 322mm, 46× optical zoom

Horizontal FOV

42°（wide-tele）～1°（far-end）

Aperture Ratio

Max. F1.8-F6.5

PTZ

Pan Range

360°  (endless)

Pan Speed

0.05°～250°/s

Tilt Range

-90°～90° rotation (excludes wiper),

-60°～90° rotation (includes wiper)

Tilt Speed

0.05°～150°/s

Positioning Accuracy

0.1°

Zoom Ratio

Support

Presets

255

Patrol Scan

16

All-round Scan

16

Auto Induction Wiper

Support

Gyro Stabilization

Gyro Stabilization

2 axis

Stabilized Frequency

<=1HZ

Gyro Steady-state Accuracy

0.5°

Max Speed Following of Carrier

100°/s

Network

Protocols

IPv4, HTTP, FTP, RTSP,DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP

Video Compression

H.264

Power Off Memory

Support

Network Interface

RJ45 10Base-T/100Base-TX

Maximum Image Size

1920×1080

FPS

25Hz

Compatibility

ONVIF, GB/T 28181, GA/T1400

General

Alarm

1 input, 1 output

External Interface

RS422

Power

DC24V±15%, 5A

PTZ Consumption

Typical consumption:28W, Turn on PTZ and heat up:60W, Laser heating at full power:92W

Protection Level

IP67

EMC

Lightning protection, surge protection and voltage transient protection

Anti-salt Fog

720H continuity test，Severity( 4)

Working Temperature

-40℃～70 ℃

Humidity

Humidity ＜90% or less

Dimension

446mm×326mm×247（includes wiper）

Weight

15KG
