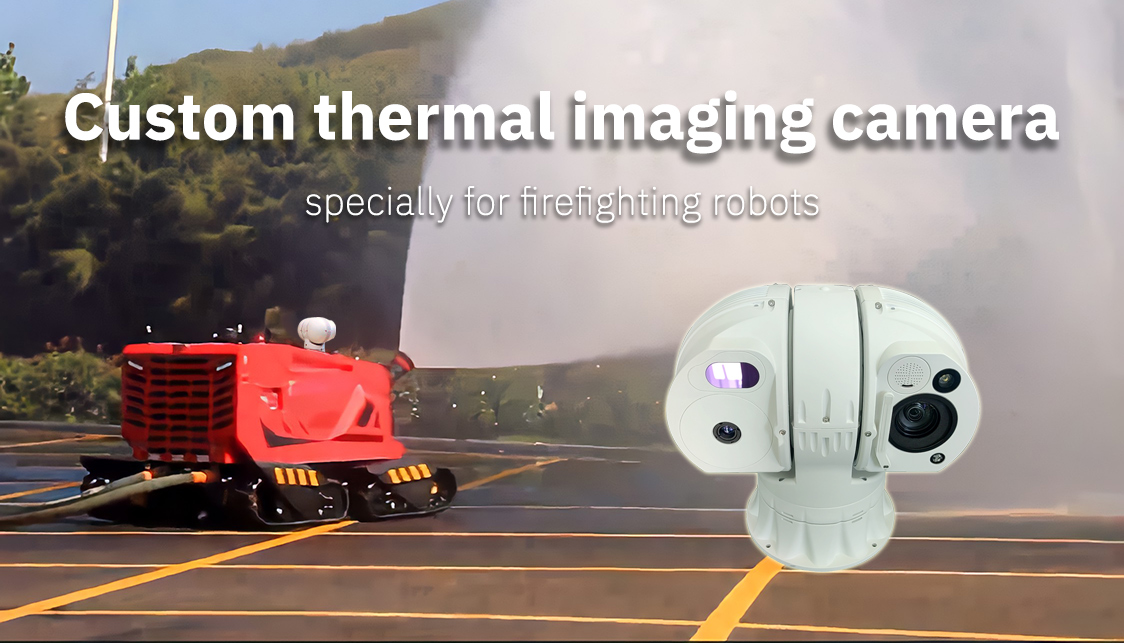

1km Small Rugged Turret Custom Thermal Imaging Camera Specially for Firefighting Robots with Lrf

Effective Distance (DRI)

Detection: 1km; Recognition: 0.3km

Thermal Sensor

Sensor

5th generation uncooled FPA sensor

Effective Pixels

640x512 50Hz

Pixel Size

17μm

NETD

≤45mK

Spectral Range

7.5～14μm, LWIR

Thermal Lens

Focal length

13mm Fixed

FOV

45.4°×37°

Angular radian

1.308mrad

Visible Camera

Sensor

1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch

Resolution

1920(H)x1080(V)

Frame Rate

32Kbps～16Mbps, 60Hz

Min. Illumination

0.05Lux(Color), 0.01Lux(B/W)

SD Card

Support

Visible Lens

Optical Lens

5.5-180mm 32X

Image Stabilization

Support

Defog

Support

Focus Control

Manual/Auto


Image Stabilization

Support Electronic Image Stabilization

Enhance

Stable operational temperature without TEC, starting time less than 4 seconds

SDE

Support SDE digital image processing

Pseudo Color

16 pseudo color and B/W, B/W inverse

AGC

Support

Ranging Ruler

Support

LRF

Range

5m ~ 1000m

Wave Length

905nm

PTZ

Patrol

Support 16 cruise routes, each can support 256 preset positions

Rotation

Pan: 0～360°, tilt: -90～+90°

Speed

Pan: 0.01~100°/S (max 180°/S), Tilt: 0.01~80°/S

Preset

3000

Enhance

Fan / Wiper / Heater attached

Watch function

preset bit / pattern / cruise / vertical / frame/ panorama / apple skin/ sweep line scan

Interface

Ethernet

RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45

Protocol

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF

Video Output

PAL/NTSC

Power

AC12V / DC24V

Compression

H.265 / H.264 / MJPEG

Environmental

Operate Temp

-25℃～+55℃

Storage Temp

-35℃～+75℃

Humidity

<90%

Ingress Protect

IP67

Housing

PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug

Anti-fog/salty

PH 6.5～7.2

Power

60 (Peak); 40W normal work

Weight

10kg

Size

312mm×200mm×296mm (L×W×H)

Mounting

Front / side / wall / hanging / vehicle / tripod pro-rack
