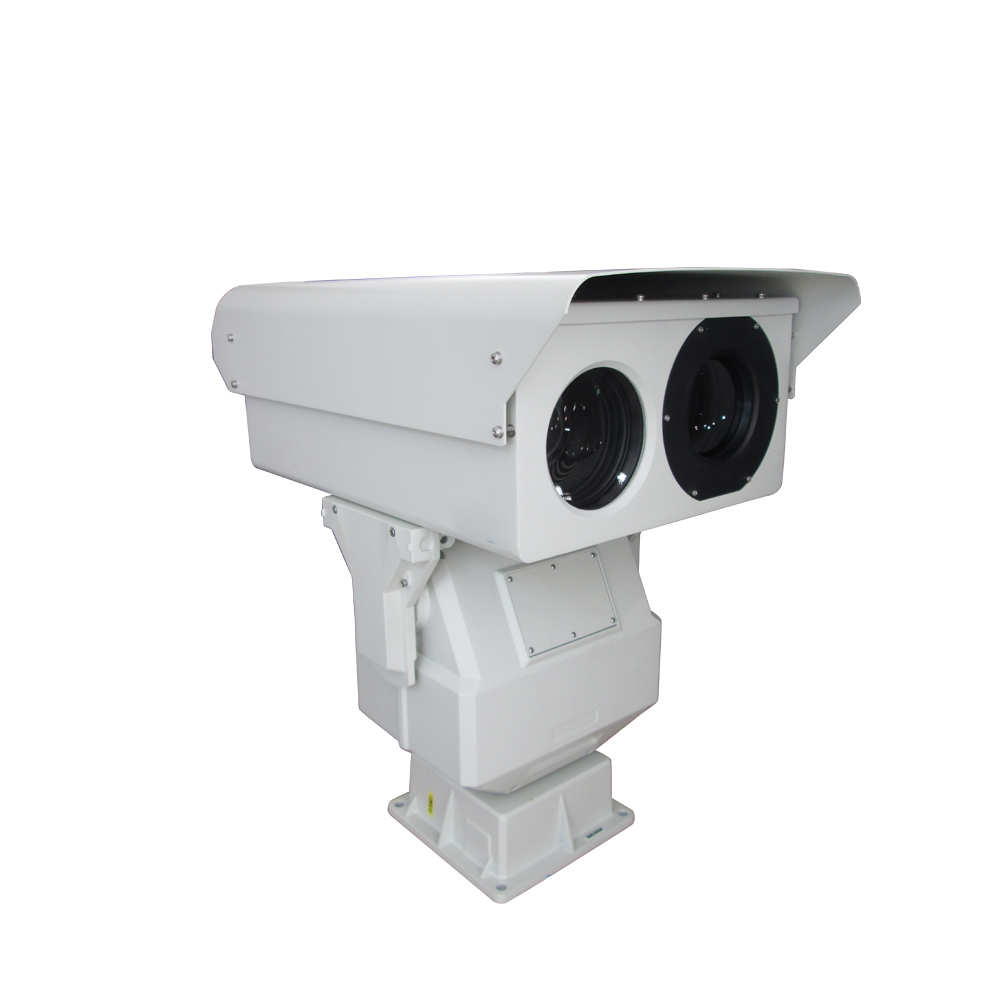

CQ-TTVC65C19-2186
| Model | CQ-TTVC65C19-2186 | |||||
| Effective Distance (DRI) | Vehicle (2.3*2.3m) | Detection: 16.4km; Recognition: 4.2km; Identification: 2.1km | ||||
| Human (1.8*0.6m) | Detection: 5.8km; Recognition: 3.0km; Identification: 1.6km | |||||
| Fire Detection | 13km (7km for 2*2m fire) | |||||
| IVS Range | 5.8km for Vehicle; 2.1km for Human | |||||
| Thermal Sensor | Sensor | 5th generation uncooled FPA sensor | ||||
| Effective Pixels | 640x512 50Hz | |||||
| Pixel Size | 17μm | |||||
| NETD | ≤45mK | |||||
| Spectral Range | 7.5 ~ 14μm, LWIR | |||||
| Thermal Lens | Focal length | 38-190mm 5X | ||||
| FOV (640*512) | 17.6°x13.2°~3.5°x2.6° | |||||
| Angular radian | 0.45~0.09mrad | |||||
| Digital Zoom | 1~8X Continuously zoom (step:0.1) | |||||
| Visible Camera | Sensor | 1/1.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch | ||||
| Resolution | 1920(H)x1080(V) | |||||
| Frame Rate | 32Kbps~16Mbps,60Hz | |||||
| Min. Illumination | 0.05Lux(Color), 0.01Lux(B/W) | |||||
| SD Card | Support | |||||
| Visible Lens | Lens size | 11~860mm 78X | ||||
| Image Stabilization | Support | |||||
| Defog | Support | |||||
| Focus Control | Manual/Auto | |||||
| Digital Zoom | 16X | |||||
| Image | Image Stabilization | Support Electronic Image Stabilization | ||||
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | |||||
| SDE | Support SDE digital image processing | |||||
| Pseudo Color | 16 pseudo color and B/W, B/W inverse, Support image fusion | |||||
| AGC | Support | |||||
| Ranging Ruler | Support | |||||
| PIP | Support picture in picture | |||||
| Bad Point Correction | Support | |||||
| PTZ | Patrol | 16*patrol route, 256 Preset for each route | ||||
| Patrol Mode | Preset position/pattern scanning/cruise scanning/vertical scanning/frame scanning/panoramic scanning/apple peel scanning/horizontal sector scanning | |||||
| Rotation | Pan: 0~360°, tilt: -45~+45° | |||||
| Speed | Pan: 0.01~30°/S, Tilt: 0.01~15°/S | |||||
| Preset | 3000 | |||||
| Enhance | Fan/Wiper/Heater attached | |||||
| Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 | ||||
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | |||||
| Video Output | PAL/NTSC | |||||
| Power | AC12V / DC24V | |||||
| Compression | H.265 / H.264 / MJPEG | |||||
| Environmental | Operate Temp | -25ºC~+55ºC(-40ºC optional) | ||||
| Storage Temp | -35ºC~+75ºC | |||||
| Humidity | <90% | |||||
| Ingress Protect | IP66 | |||||
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |||||
| Anti-fog/salty | PH 6.5~7.2 | |||||
| Lightning Proof | 6000V | |||||
| Power | 120W (Peak) | |||||
